Connecting Zapier and Letta

Letta’s stateful AI agents can enrich existing Zapier workflows. This guide demonstrates how to create a routing system for customer support tickets by integrating Zapier automation with a Letta agent. The agent remembers customer history, learns routing patterns, and provides intelligent recommendations.

What you’ll build

Section titled “What you’ll build”

You’ll create the following customer support workflow, and in doing so, learn to add Letta agents to Zapier automations:

graph LR
    A["Google Sheets
(New ticket)"] --> B["Letta agent
(Intelligence layer)"] --> C["Slack
(Notification)"]

The Letta agent sits between your trigger and action, analyzing each ticket with full context from previous interactions. This approach adds intelligence to your workflow without replacing your existing tools.

Prerequisites

Section titled “Prerequisites”

To follow along, you need:

  • A free Letta Cloud account: For creating and hosting your stateful agent
  • A Zapier account: For workflow automation (a free trial or Pro plan is required for Webhooks)
  • Google Sheets: For the ticket submission trigger
  • Slack (or any messaging app Zapier supports): For team notifications
  • Python (version 3.8 or later) or Node.js (version 18 or later)
  • A code editor

Get your Letta API key

Section titled “Get your Letta API key”
Get your Letta API key

  1. Create a Letta account

    If you don’t have one, sign up for a free account at letta.com.

  2. Navigate to API keys

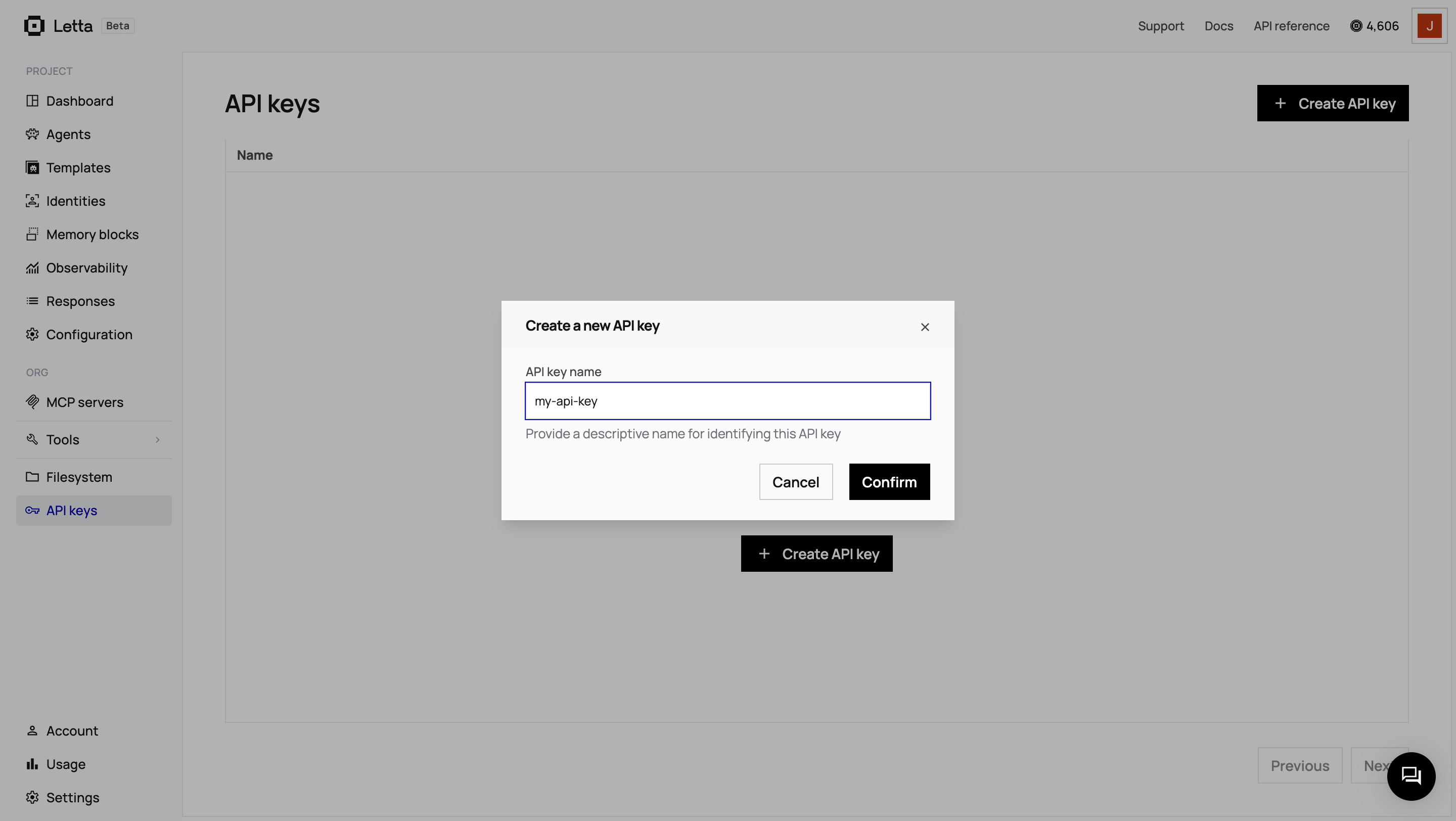

    Once logged in, click on API keys in the sidebar. Letta API Key Navigation

  3. Create and copy your key

    Click + Create API key, give it a descriptive name (such as Zapier Integration), and click Confirm. Copy the key and save it somewhere safe.

Once you have your API key, create a .env file in your project directory:

Terminal window
LETTA_API_KEY=your_letta_api_key_here

Prepare the project dependencies

Section titled “Prepare the project dependencies”

  1. If you don’t have an account, sign up at zapier.com. The free tier works for this tutorial.

  2. Create a new Google Sheet, called Support Tickets, with the following columns:

    • Ticket ID (Column A)
    • Customer Name (Column B)
    • Customer Email (Column C)
    • Subject (Column D)
    • Description (Column E)
    • Priority (Column F)

  3. Make sure you have access to a Slack workspace where you can receive notifications (you’ll connect the workspace to Zapier in Step 3).

Step 1: Create the Letta agent

Section titled “Step 1: Create the Letta agent”

First, configure a Letta agent with memory blocks for customer history and routing knowledge.

Install the dependencies

Section titled “Install the dependencies”

Create a requirements.txt file that contains the following dependencies:

letta-client
python-dotenv

Run the following code to install the dependencies:

Terminal window
pip install -r requirements.txt

Create the agent script

Section titled “Create the agent script”

Create a script to initialize your Letta agent with three memory blocks:

  • A persona block to define the agent’s role and behavior
  • A routing_knowledge block to track ticket-routing patterns
  • A customer_history block to maintain the memory of customer interactions

Create a file named create-agent.py and add the following code to it:

"""
Create a Letta agent for intelligent support ticket routing.


This script creates a Letta agent with memory blocks designed to:
- Remember customer history across all interactions
- Learn routing patterns that lead to faster resolutions
- Provide context-aware ticket analysis and routing recommendations


Usage:
    python create-agent.py


Requirements:
    - LETTA_API_KEY environment variable set
    - letta-client package installed
"""


import os
from letta_client import Letta
from dotenv import load_dotenv


# Load environment variables
load_dotenv()


def create_support_agent():
    """Create and configure a support ticket routing agent."""


    # Initialize the Letta client
    api_key = os.getenv("LETTA_API_KEY")
    if not api_key:
        raise ValueError("LETTA_API_KEY environment variable not set. Please add it to your .env file.")


    client = Letta(api_key=api_key)
    print("Connected to Letta Cloud")


    # Create the agent with memory blocks
    agent = client.agents.create(
        name="Support Ticket Router",
        description="Intelligent support ticket routing assistant with customer memory and learning capabilities",
        memory_blocks=[
            {
                "label": "persona",
                "value": """I am an intelligent support ticket routing assistant. My role is to:
- Analyze incoming support tickets with full context
- Remember customer history across all interactions
- Learn which routing decisions lead to fastest resolutions
- Provide detailed routing recommendations with reasoning
- Continuously improve my routing accuracy over time


I always provide structured responses with routing recommendations, priority levels, and context."""
            },
            {
                "label": "routing_knowledge",
                "value": """I track patterns about ticket routing and resolutions:
- Which teams handle which types of issues most effectively
- Average resolution times for different issue categories
- Patterns in urgent vs routine tickets
- Success rates of different routing decisions


I learn from each ticket to improve future routing decisions."""
            },
            {
                "label": "customer_history",
                "value": """I maintain memory of customer interactions:
- Previous tickets and their resolutions
- Communication preferences (technical level, urgency patterns)
- Account-specific issues and patterns
- Customer satisfaction indicators


I use this history to provide personalized, context-aware routing."""
            }
        ]
    )


    print(f"Agent created: {agent.id}")
    print(f"\nAdd this to your .env file:")
    print(f"LETTA_AGENT_ID={agent.id}")


    return agent


if __name__ == "__main__":
    try:
        agent = create_support_agent()
    except Exception as e:
        print(f"Failed: {e}")
        raise

Run the agent creation script

Section titled “Run the agent creation script”
Python
python create-agent.py
TypeScript
npx tsx create-agent.ts

You should see the following output:

Connected to Letta Cloud
Agent created: agent-abc123def456


Add this to your .env file:
LETTA_AGENT_ID=agent-abc123def456

Save the agent ID

Section titled “Save the agent ID”

Copy your agent ID from the output above and add it to your .env file:

Terminal window
LETTA_API_KEY=your_letta_api_key_here
LETTA_AGENT_ID=agent-abc123def456

Test your agent

Section titled “Test your agent”

Before connecting to Zapier, test that your agent analyzes tickets correctly.

Create the test script

This script sends sample support tickets to your agent and displays the routing recommendations.

Create a file named test-ticket.py and add the following code to it:

"""
Test script for sending support tickets to the Letta agent.


This script simulates what Zapier does: it sends a support ticket
to the Letta agent and receives an intelligent routing recommendation.


Usage:
    python test-ticket.py


Requirements:
    - LETTA_API_KEY environment variable set
    - LETTA_AGENT_ID environment variable set
    - letta-client package installed
"""


import os
import json
from letta_client import Letta
from dotenv import load_dotenv


# Load environment variables
load_dotenv()


# Sample test tickets
SAMPLE_TICKETS = [
    {
        "customer_name": "John Doe",
        "customer_email": "[email protected]",
        "subject": "Cannot log in to dashboard",
        "description": "I'm getting a 500 error when trying to log in. This is the third time this month.",
        "priority": "High"
    },
    {
        "customer_name": "Sarah Smith",
        "customer_email": "[email protected]",
        "subject": "Question about billing",
        "description": "I was charged twice for my subscription this month. Can someone look into this?",
        "priority": "Medium"
    },
    {
        "customer_name": "Mike Johnson",
        "customer_email": "[email protected]",
        "subject": "Feature request",
        "description": "Would love to see dark mode added to the app. Many users have been asking for this.",
        "priority": "Low"
    }
]


def format_ticket_message(ticket):
    """Format a ticket into a message for the Letta agent."""
    return f"""New support ticket received:


Customer: {ticket['customer_name']} ({ticket['customer_email']})
Subject: {ticket['subject']}
Description: {ticket['description']}
Priority: {ticket['priority']}


Please analyze this ticket and provide:
1. Recommended team to route to
2. Adjusted priority level (if needed)
3. Your reasoning based on customer history and patterns
4. A suggested response message
5. Estimated resolution time"""


def send_ticket_to_agent(client, agent_id, ticket):
    """Send a ticket to the Letta agent and get routing recommendation."""


    # Send message to agent
    message_content = format_ticket_message(ticket)


    response = client.agents.messages.create(
        agent_id=agent_id,
        messages=[
            {
                "role": "user",
                "content": message_content
            }
        ]
    )


    # Extract and display the agent's response
    for message in response.messages:
        if message.message_type == 'assistant_message':
            print(message.content)
            print()


    return response


def main():
    """Main test function."""


    # Get credentials from environment
    api_key = os.getenv("LETTA_API_KEY")
    agent_id = os.getenv("LETTA_AGENT_ID")


    if not api_key:
        raise ValueError("LETTA_API_KEY not set. Add it to your .env file.")


    if not agent_id:
        raise ValueError("LETTA_AGENT_ID not set. Run create-agent.py first and add the ID to your .env file.")


    # Initialize client
    client = Letta(api_key=api_key)
    print("Connected to Letta Cloud")
    print(f"Using agent: {agent_id}\n")


    # Test with sample tickets
    for i, ticket in enumerate(SAMPLE_TICKETS, 1):
        print(f"Processing ticket {i}/{len(SAMPLE_TICKETS)}: {ticket['subject']}")
        try:
            send_ticket_to_agent(client, agent_id, ticket)
        except Exception as e:
            print(f"Failed: {e}")
            continue


if __name__ == "__main__":
    try:
        main()
    except Exception as e:
        print(f"Error: {e}")
        raise
Run the test script
Python
python test-ticket.py
TypeScript
npx tsx test-ticket.ts

You should see intelligent routing recommendations for each ticket:

Connected to Letta Cloud
Using agent: agent-abc123def456


Processing ticket 1/3: Cannot log in to dashboard
Based on the ticket analysis:


Recommended Team: Engineering - Backend
Priority Level: High
Reasoning: Customer John Doe has reported a 500 error when attempting to log in.
This is the third occurrence this month, indicating a recurring technical issue
that requires immediate attention from the backend engineering team. The 500
error suggests a server-side problem that needs investigation.


Suggested Response: "Hi John, I see you're experiencing login issues with a 500
error. This is the third time this month, and I apologize for the inconvenience.
Our backend team is investigating the recurring issue and will prioritize a fix.
I'll keep you updated on our progress."


Estimated Resolution Time: 2-4 hours


Processing ticket 2/3: Question about billing
...

If you see context-aware responses, your agent is working correctly.

View your agent in the ADE

You can also view your agent in Letta’s Agent Development Environment (ADE), a visual interface for managing and inspecting agents.

  1. Go to https://app.letta.com and sign in with your Letta account

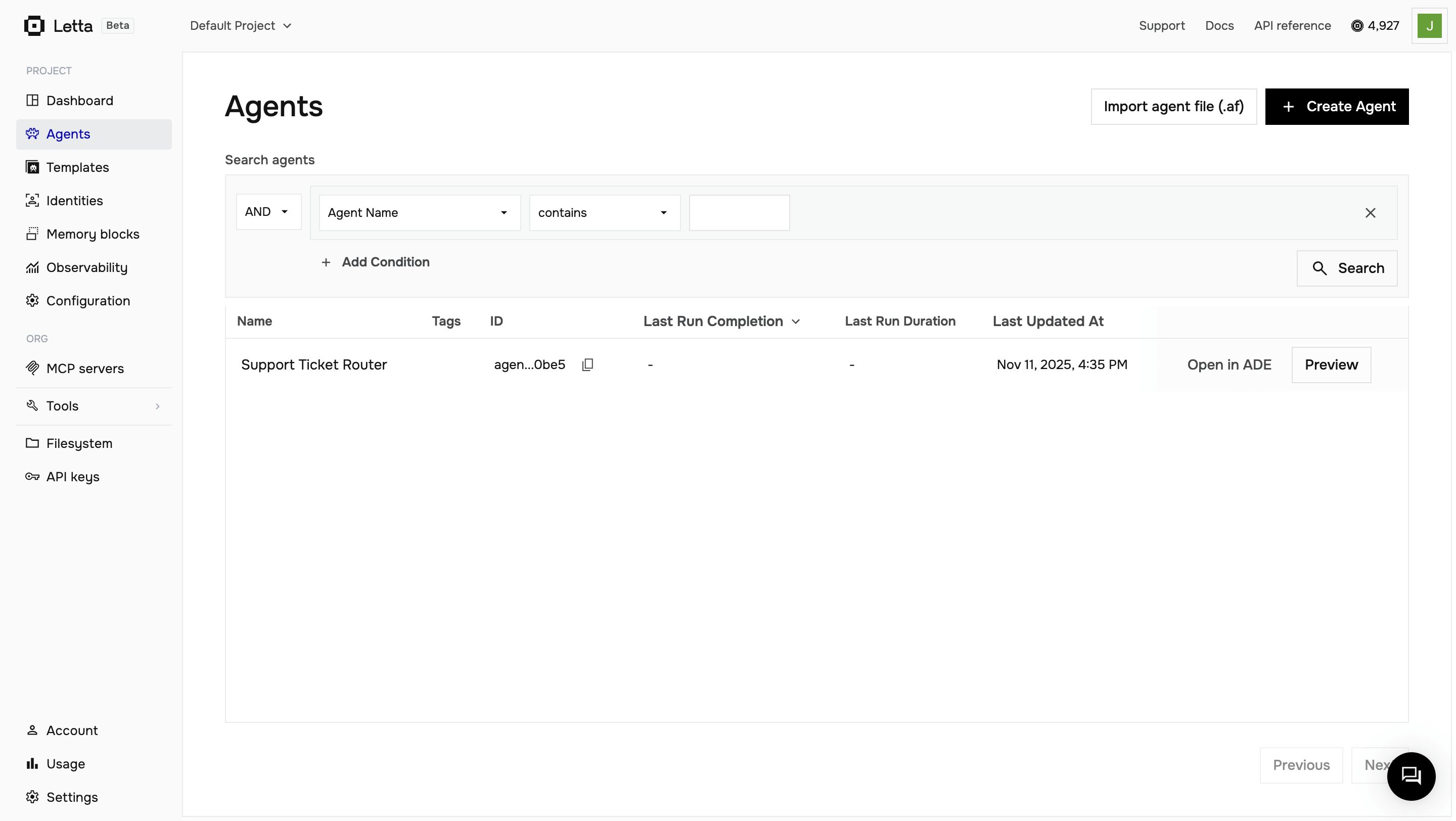

  2. In the left navigation bar, click Agents. Find your Support Ticket Router agent.

    Agent List

  3. Click Open in ADE.

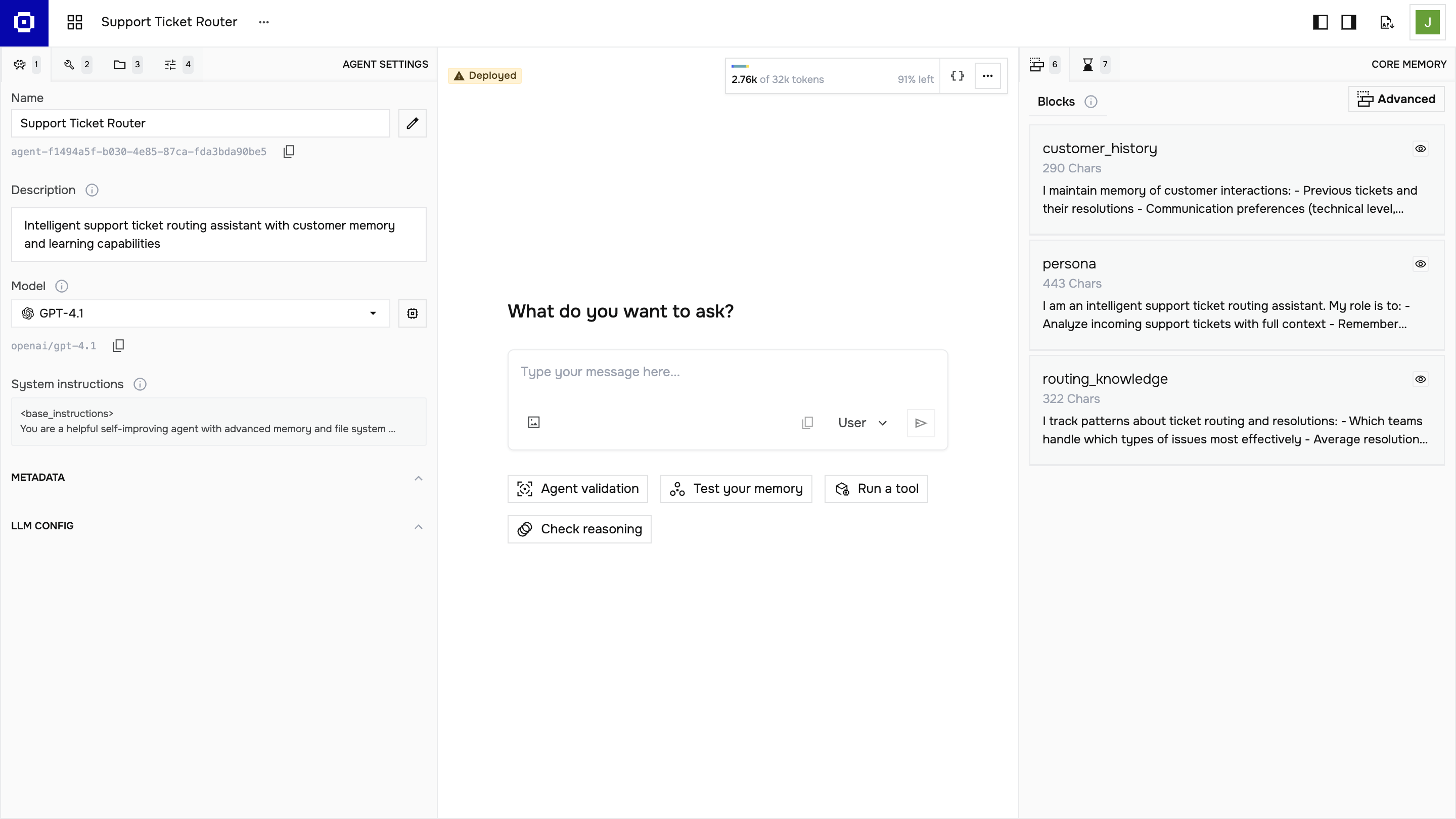

    Agent in ADE

  4. In the ADE, you can inspect your agent’s configuration, including its:

    • Memory blocks: In the Core Memory panel on the right (persona, routing_knowledge, and customer_history)
    • System instructions: In the Agent Settings panel on the left (and other behavior settings)
    • Chat interface: In the center, where the agent processes tickets

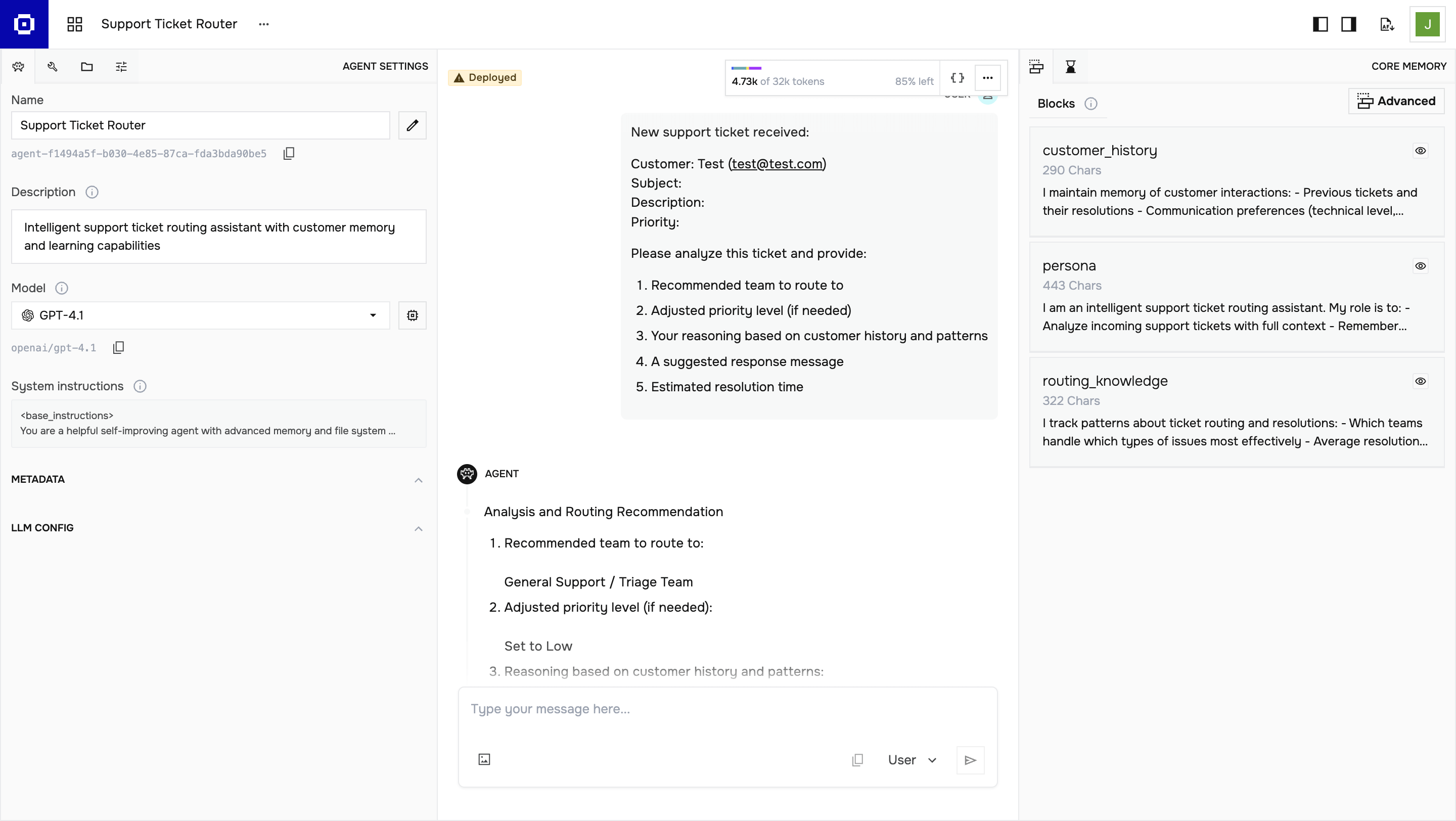

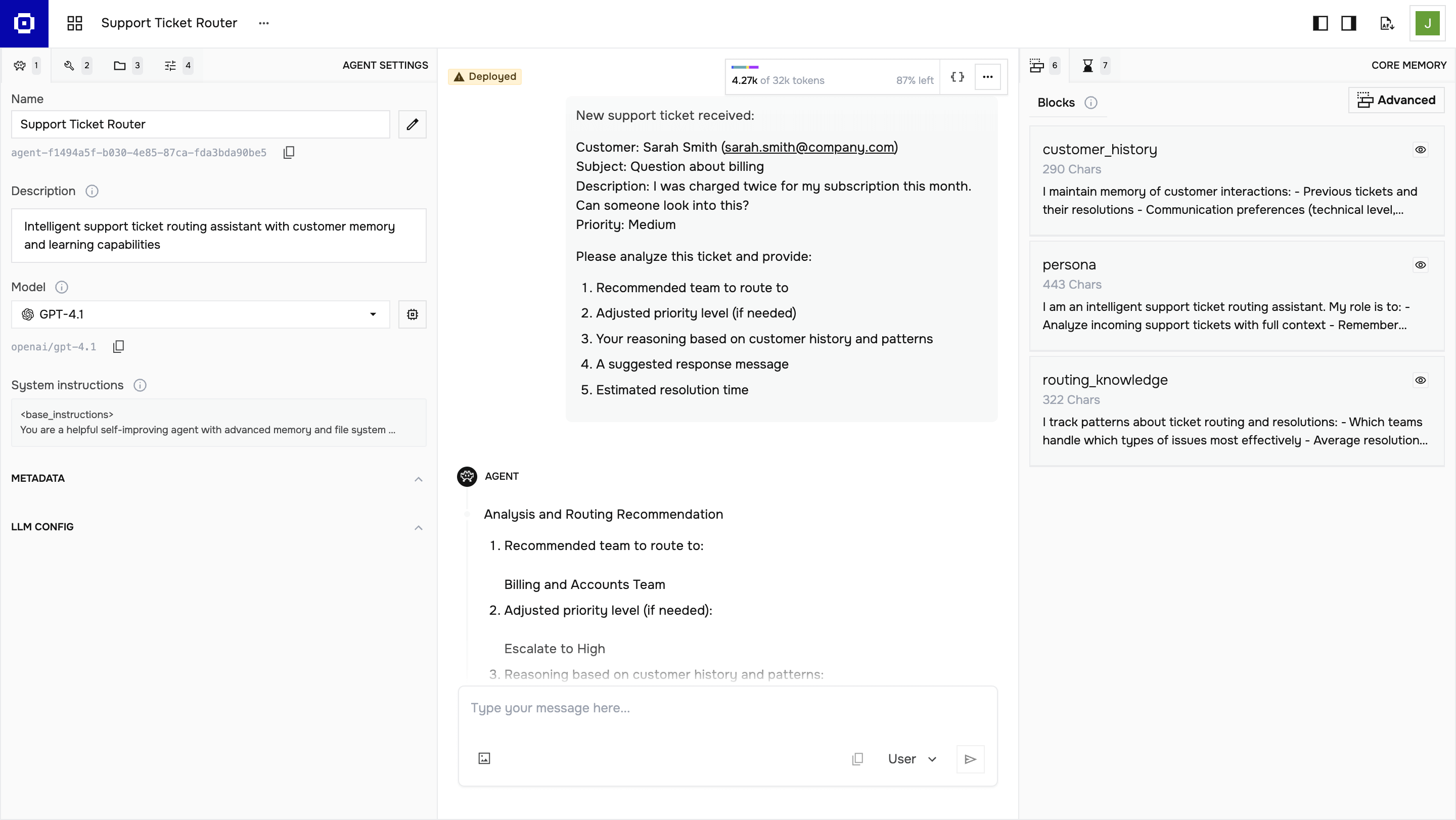

  5. If you ran the test script, you can see the conversation history and responses in the chat interface:

    Agent chat history in ADE

The ADE provides full visibility into your agent’s configuration and state. When your Zapier workflow runs, you can return to the ADE to see how the agent’s memory evolves as it processes real support tickets.

Learn more about the Agent Development Environment →

Step 2: Configure Zapier

Section titled “Step 2: Configure Zapier”

Now we’ll connect your Letta agent to Zapier to create the automated workflow.

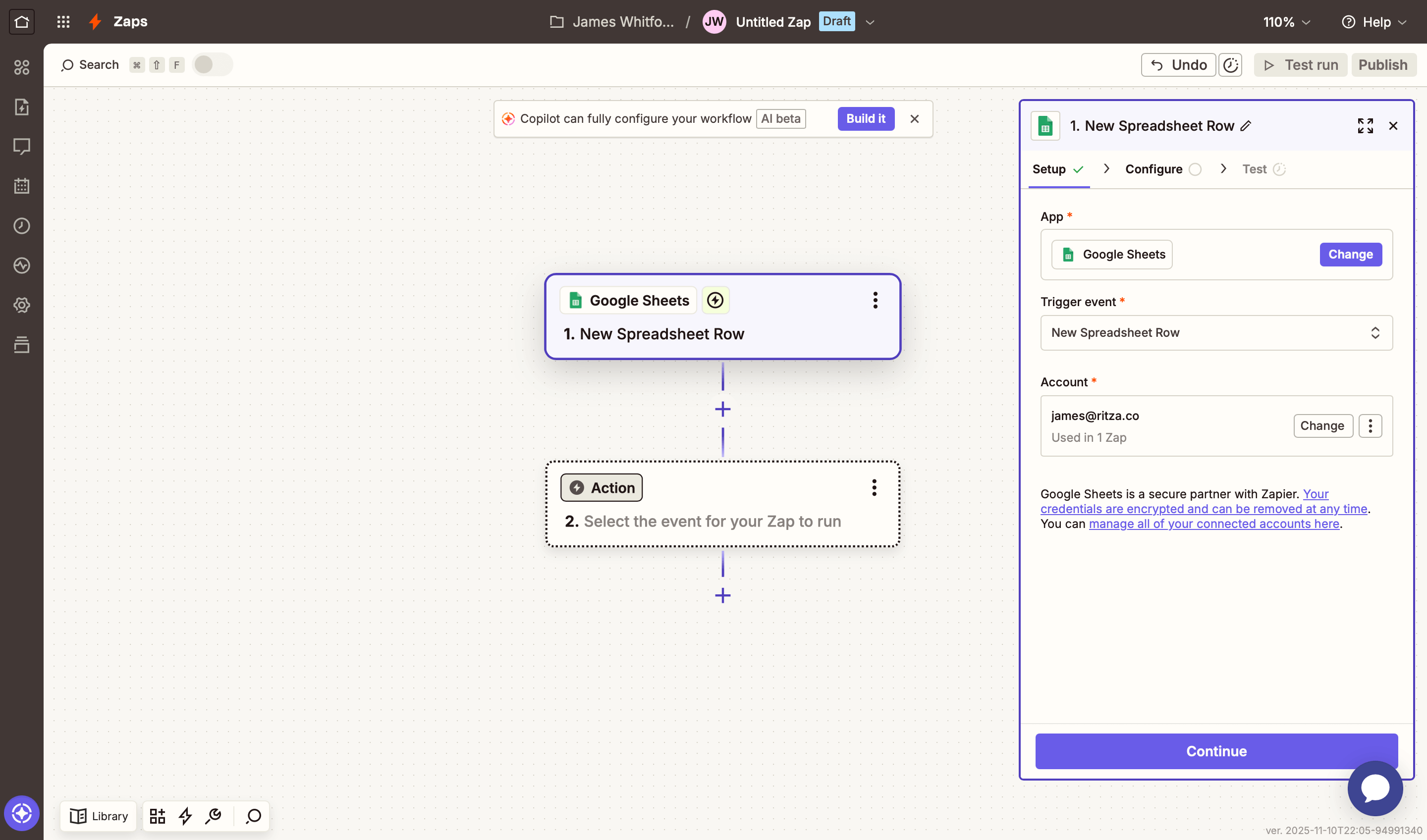

Create the Google Sheets trigger

Section titled “Create the Google Sheets trigger”

  1. Create a new Zap

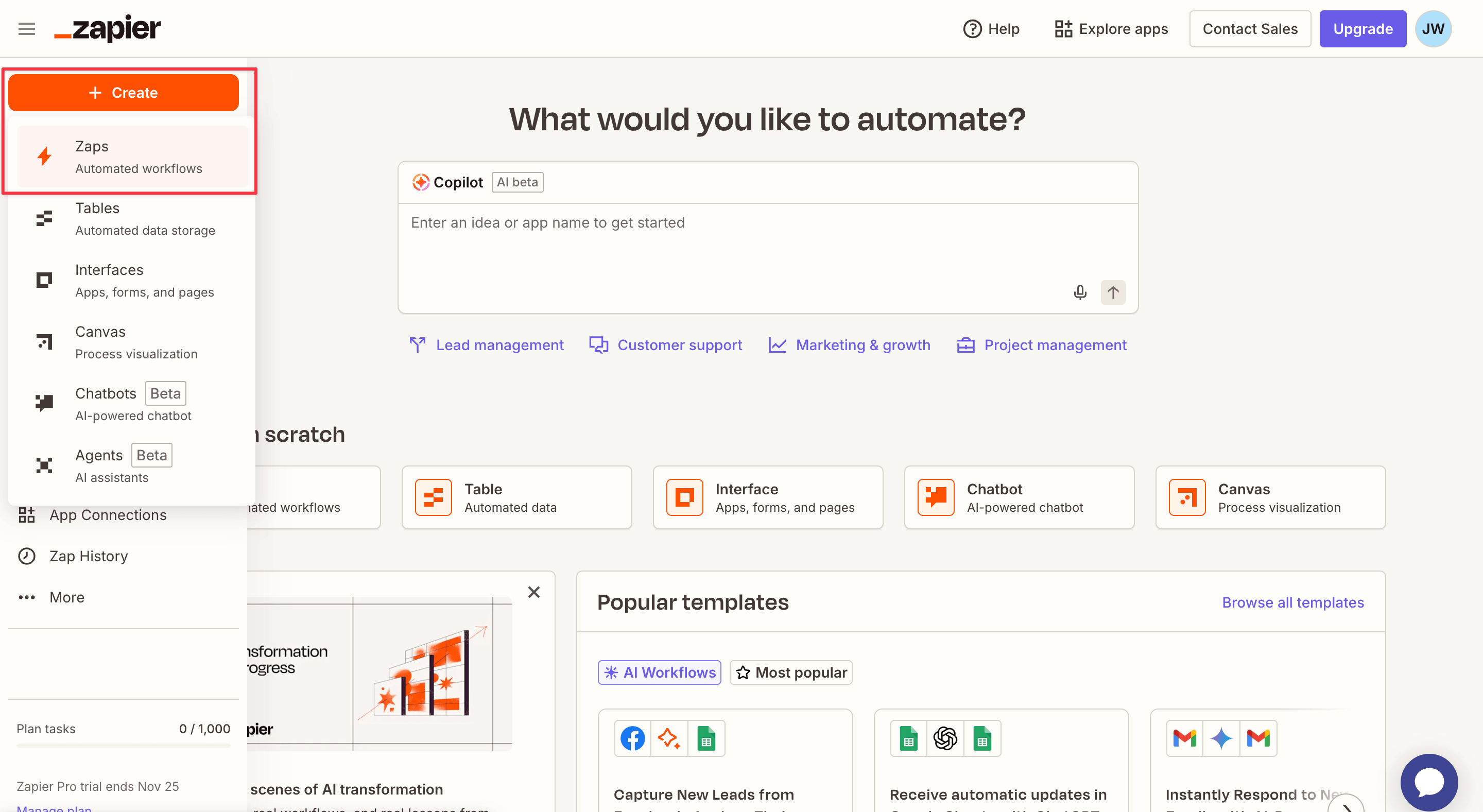

    In Zapier, click + Create and select Zaps.

    Create Zap button

  2. Set up the trigger

    • Set Google Sheets as the trigger App.
    • Set New Spreadsheet Row as the Trigger event.
    • Enter your Google user account under Account.
    • Click Continue.

    Google Sheets trigger

  3. Configure the trigger

    • Set the Support Tickets file you created earlier as the Spreadsheet.
    • Set Sheet1 as the Worksheet.

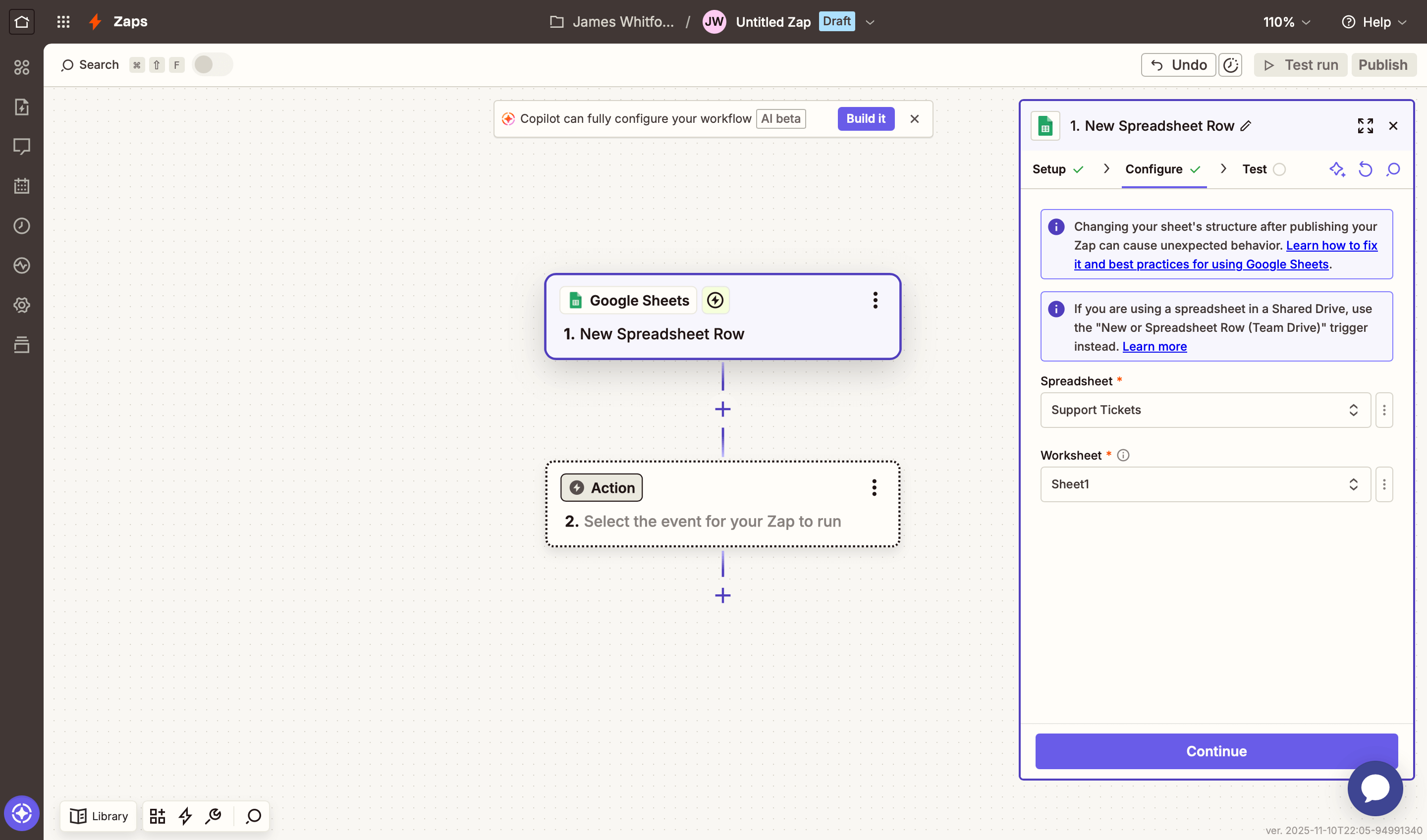

    Connect Google Sheets

  4. Test the trigger

    • Add a sample row to your Google Sheet with test data.
    • Click Test trigger in Zapier.
    • Zapier should find your sample row.
    • Click Continue with selected record.

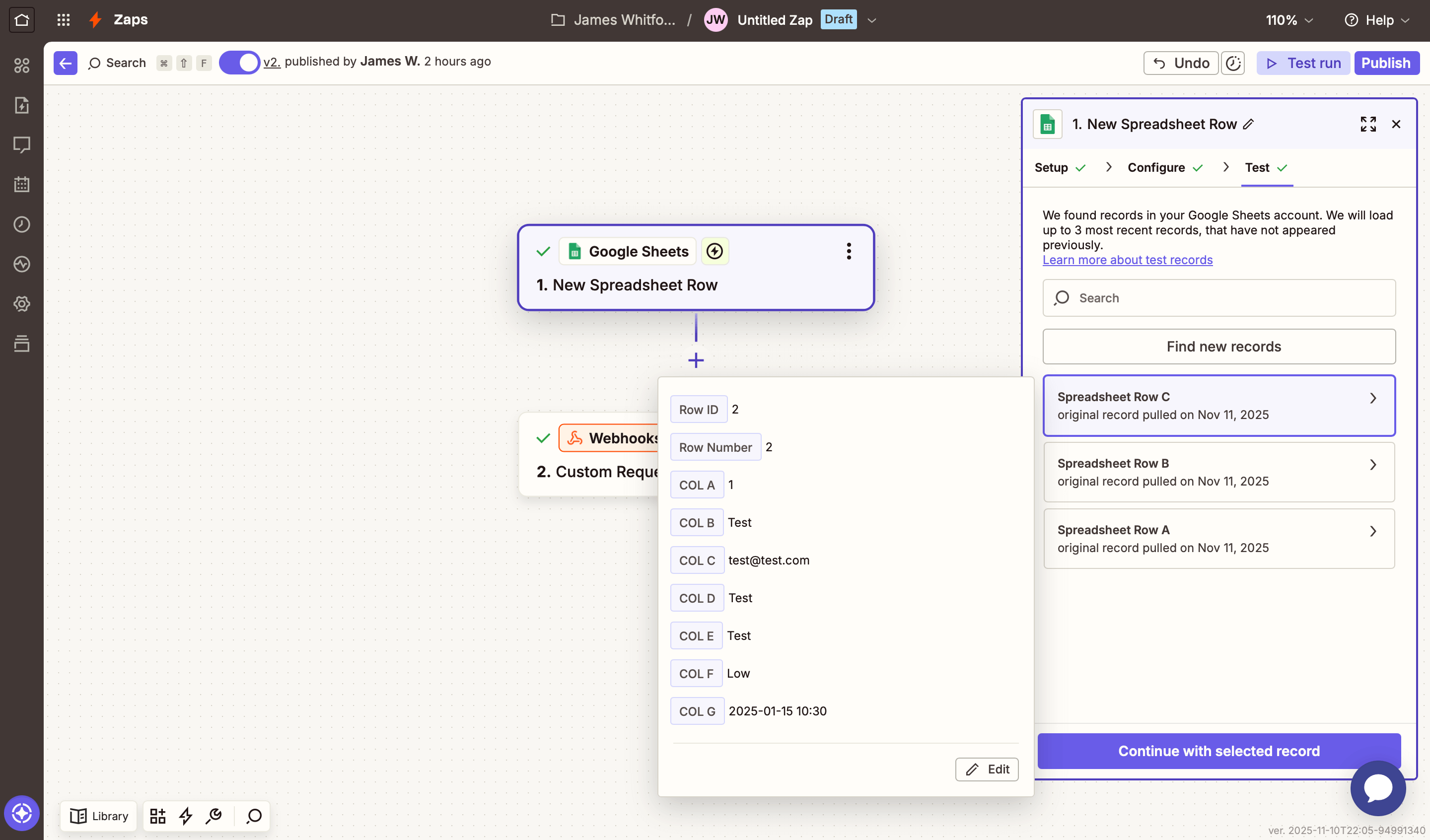

    Test Trigger

Add the Letta agent action

Section titled “Add the Letta agent action”

Now you’ll add the next step to your Zap. This step sends the ticket data to your Letta agent for analysis.

  1. Add a Webhooks action

    • Click the + button to add another action.
    • Search for and select Webhooks by Zapier.
    • Set Custom Request as the Action event.
    • Click Continue.

  2. Configure the request method and URL

    • For Method, select POST
    • In the URL field, enter the following:
    https://api.letta.com/v1/agents/YOUR_AGENT_ID_HERE/messages

    Replace YOUR_AGENT_ID_HERE with the agent ID from Step 1.

  3. Configure Data Pass-Through

    Set Data Pass-Through to False.

    This setting ensures the response structure is preserved correctly for the next step.

  4. Configure the request body

    In the Data field, paste the following JSON structure:

    {
      "messages": [
        {
          "role": "user",
          "content": "New support ticket received:\n\nCustomer: {{Customer Name}} ({{Customer Email}})\nSubject: {{Subject}}\nDescription: {{Description}}\nPriority: {{Priority}}\n\nPlease analyze this ticket and provide:\n1. Recommended team to route to\n2. Adjusted priority level (if needed)\n3. Your reasoning based on customer history and patterns\n4. A suggested response message\n5. Estimated resolution time"
        }
      ]
    }

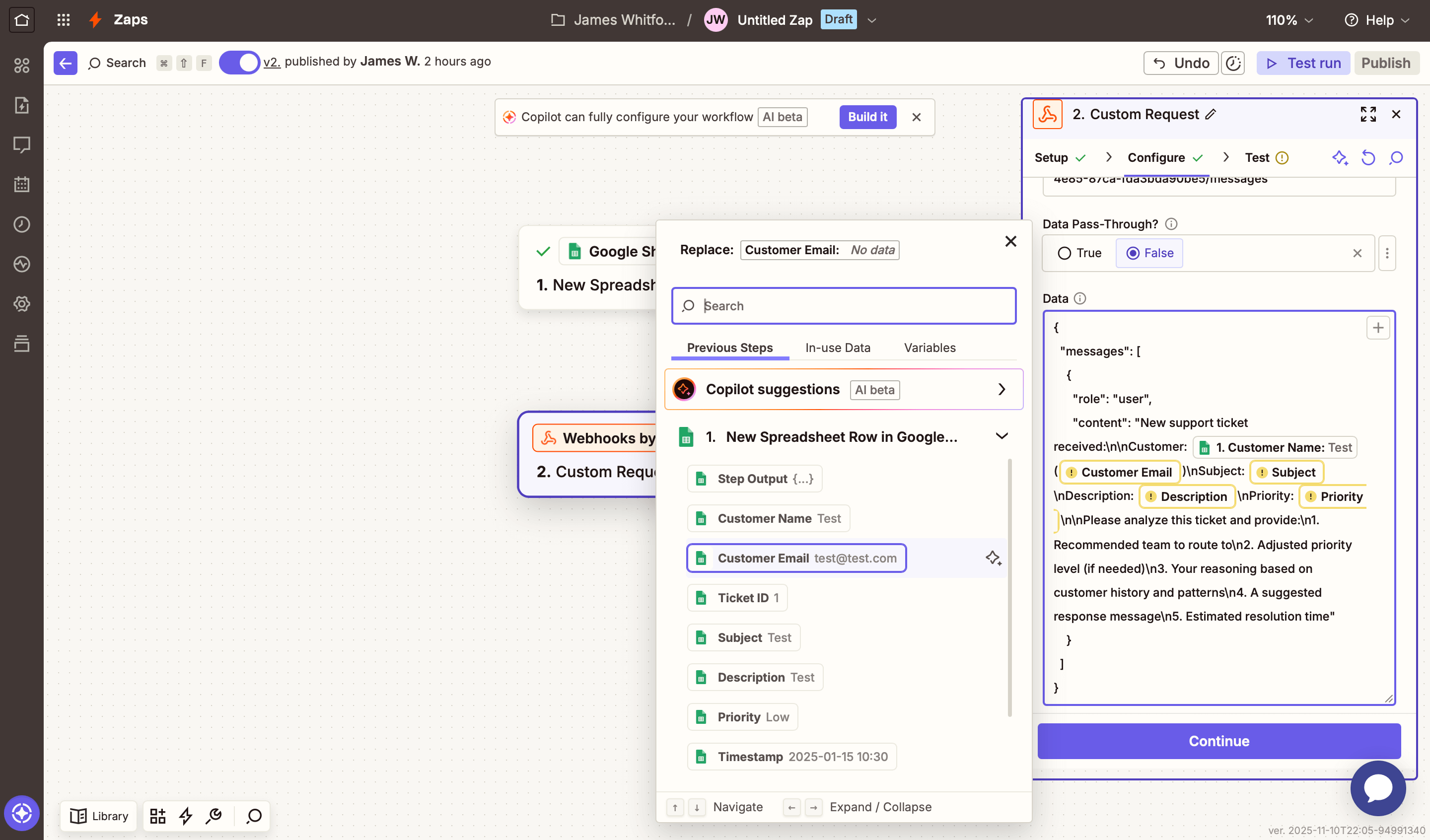

    Map fields

  5. Add headers

    In the Headers section, add an Authorization and a Content-Type header with the following values:

    HeaderValue
    AuthorizationBearer YOUR_LETTA_API_KEY
    Content-Typeapplication/json

    Replace YOUR_LETTA_API_KEY with your actual Letta API key.

  6. Test the Webhook

    • Click Test step.
    • Wait for the response (it may take a few seconds).
    • You should see a response with a messages array.
    • Expand the response to check that the agent’s routing recommendation is present.
    • Click Continue.

    You can also verify the test worked by checking your agent in the ADE at https://app.letta.com. You should see the test ticket in the conversation history.

    Agent in ADE

Add the Slack notification action

Section titled “Add the Slack notification action”

Next, create the step that sends a notification to Slack.

  1. Add a Slack action

    • Click the + button to add another action.
    • Search for and select Slack.
    • Set Send Channel Message as the Action event.
    • Connect your Slack workspace.
    • Click Continue.

  2. Configure the Slack message

    • For Channel, select your channel (for example, #support).
    • For Message Text, use the following format and map the fields from previous steps:
    *New Support Ticket*


    *Customer:* {{Customer Name}} ({{Customer Email}})
    *Subject:* {{Subject}}
    *Description:* {{Description}}
    *Priority:* {{Priority}}


    ---


    *Letta AI Recommendation:*


    {{Webhooks by Zapier: Messages 0 Content}}


    ---


    View in Google Sheets
    • Map the fields as follows:
      • For Google Sheets data (such as Customer Name, Email, and Subject): First, click on the warning or on the field placeholder in the message text to open the dialog. Then, click the Previous Steps tab, expand the 1. New Spreadsheet Row in Google… option, and select the appropriate field.
      • For the Letta AI response: First, click on the Messages 0 Content: No data warning to open the dialog. Then, click the Previous Steps tab, expand the 2. Custom Request in Webhooks by… option, and select Messages Content.

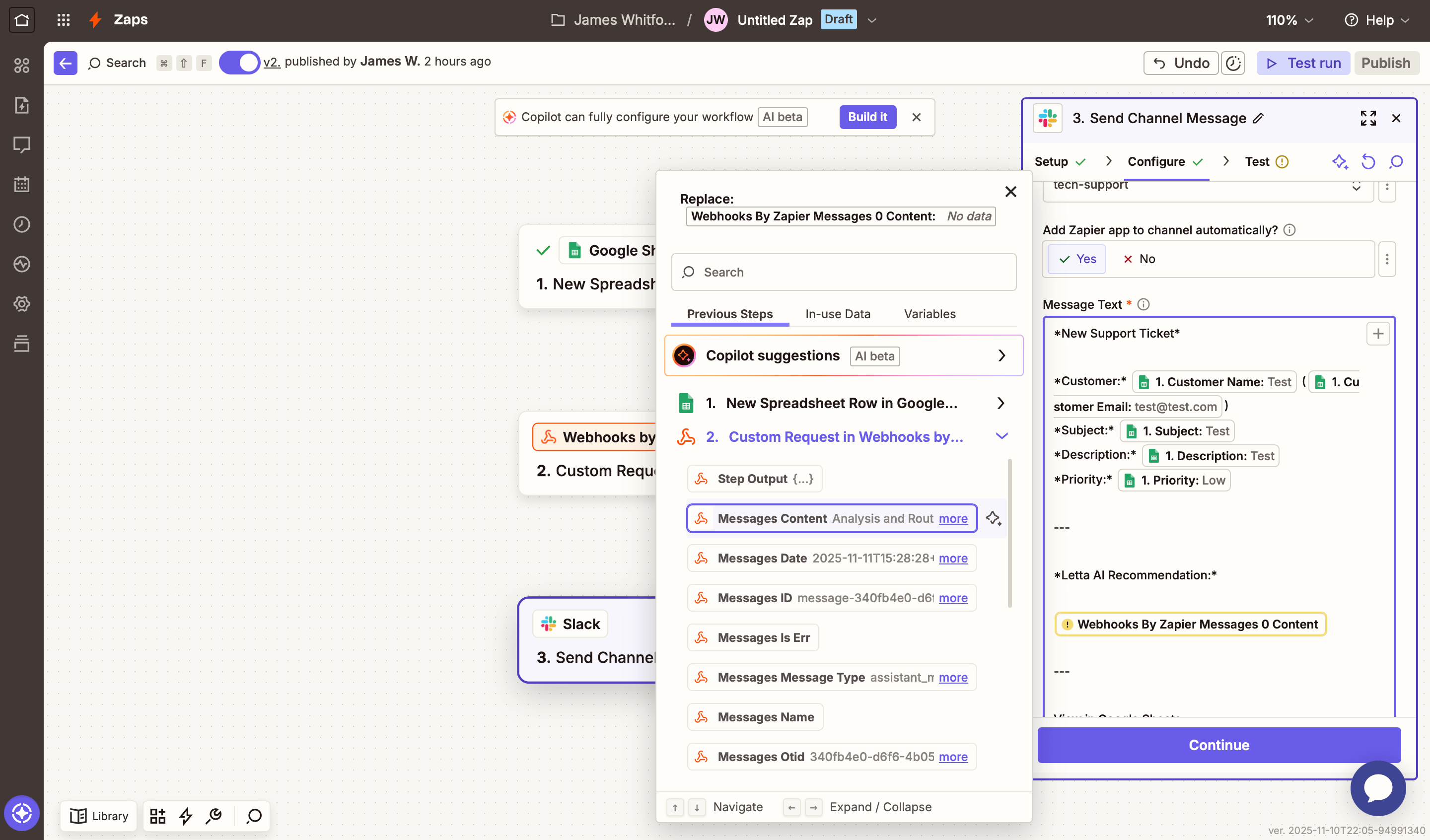

    Slack Message Configuration

    • Click Continue.

  3. Test the Slack action

    • Click Test step.
    • Check your Slack channel.
    • You should see a formatted message with the ticket details and agent recommendation:

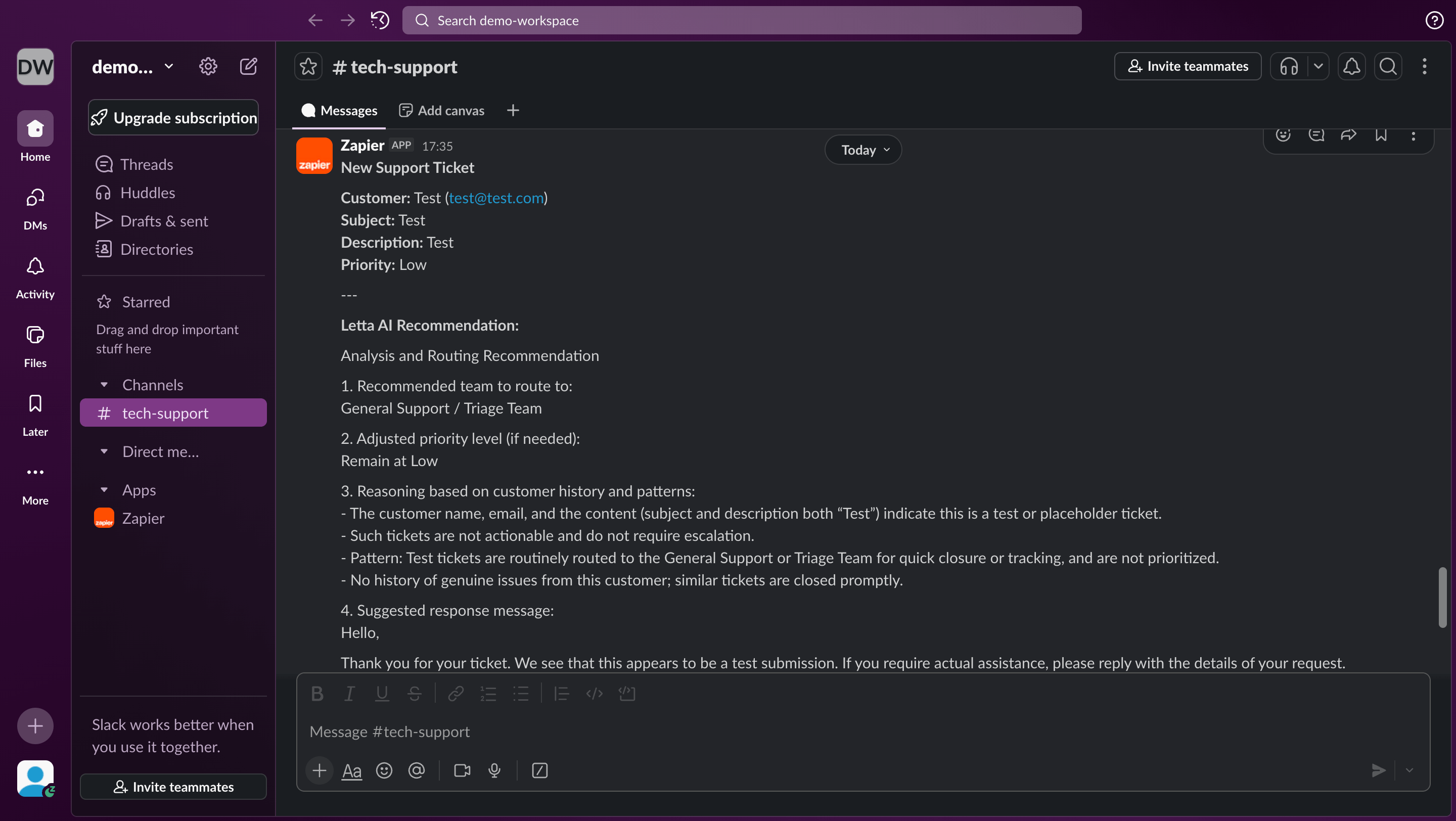

    Slack Test Message

Publish your Zap

Section titled “Publish your Zap”

  1. Name your Zap

    Click the title at the top and rename it something descriptive, like Intelligent Support Ticket Routing with Letta.

  2. Turn the Zap on

    • Click Publish in the top right corner.
    • Toggle the Zap to On.

Your Zapier workflow is now live and will process new support tickets automatically.

Testing the complete flow

Section titled “Testing the complete flow”

Add an example ticket to your Google Sheet:

Ticket IDCustomer NameCustomer EmailSubjectDescriptionPriorityTimestamp
1James Doe[email protected]Cannot access accountGetting an error when logging inHigh2025-01-15 10:30 AM

Wait one to two minutes (Zapier polls every 1-15 minutes depending on your plan). You should receive a Slack notification with the following information:

  • The ticket details from Google Sheets
  • Letta’s intelligent routing recommendation with reasoning
  • A suggested response message
  • An estimated resolution time

Try adding another ticket from the same customer. The agent will remember the first interaction and provide context-aware routing based on the customer’s history.

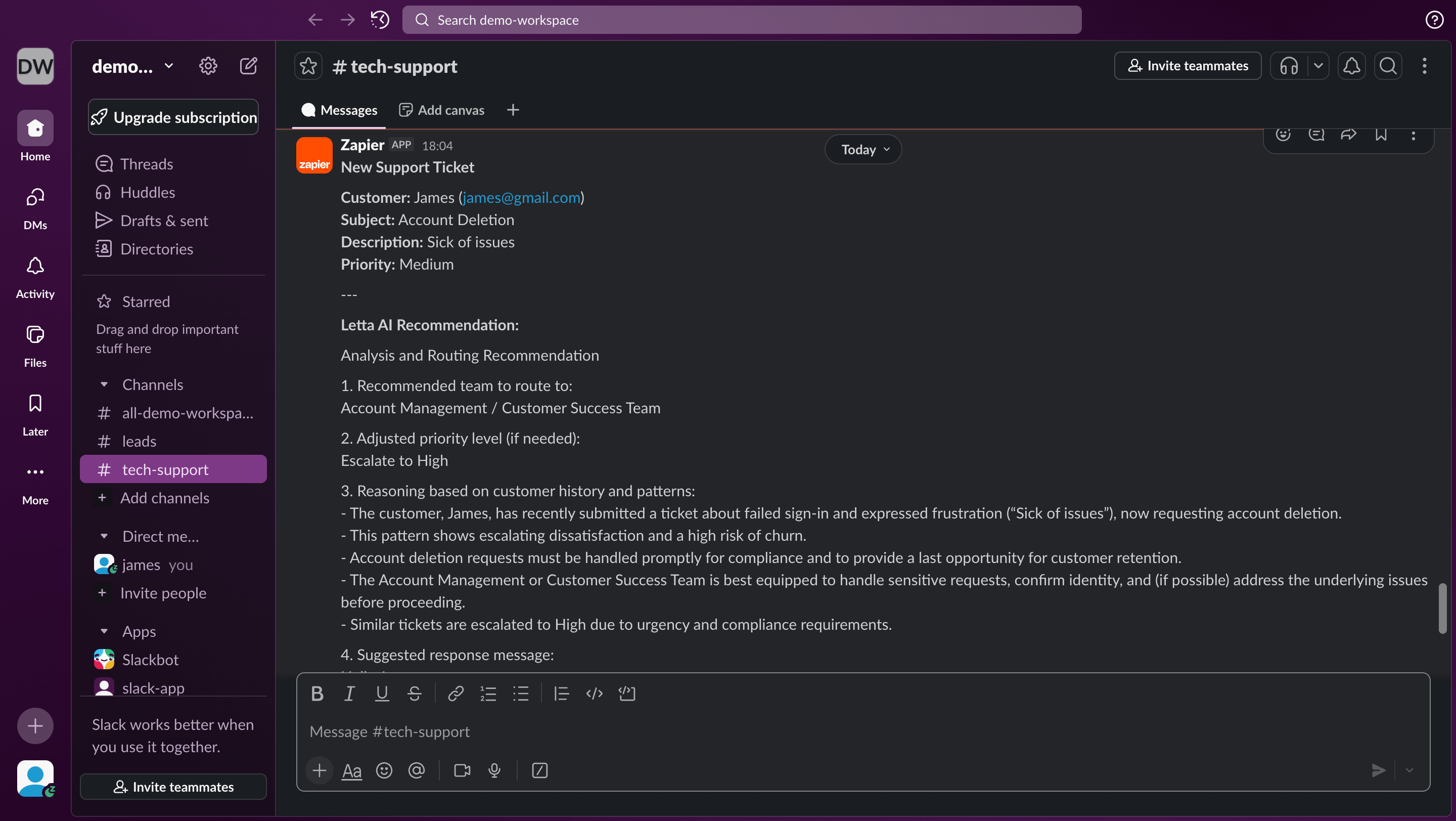

Complete flow example

Next steps

Section titled “Next steps”

Now that you’ve integrated a Letta agent into your Zapier workflow, you can apply this same pattern to other use cases, such as lead qualification, content moderation, or expense approval. Each workflow follows the same structure:

  • A trigger sends data to your Letta agent.
  • The agent processes it with context and memory.
  • The response triggers the next action.

Explore these guides to see how you can extend what you’ve built:

Custom tools

Learn how to create custom tools to extend your agent’s capabilities beyond message handling.

Memory management

Explore how to customize memory blocks for different workflow requirements.
