Agentic RAG with Letta

In the Agentic RAG approach, we delegate the retrieval process to the agent itself. Instead of your application deciding what to search for, we provide the agent with a custom tool that allows it to query your vector database directly. This makes the agent more autonomous and your client-side code much simpler.

By the end of this tutorial, you’ll have a research assistant that autonomously decides when to search your vector database and what queries to use.

Prerequisites

To follow along, you need free accounts for:

• Letta - To access the agent development platform
• Hugging Face - For generating embeddings (MongoDB and Qdrant users only)
• One of the following vector databases:
  • ChromaDB Cloud for a hosted vector database
  • MongoDB Atlas for vector search with MongoDB
  • Qdrant Cloud for a high-performance vector database

You will also need Python 3.8+ or Node.js v18+ and a code editor.

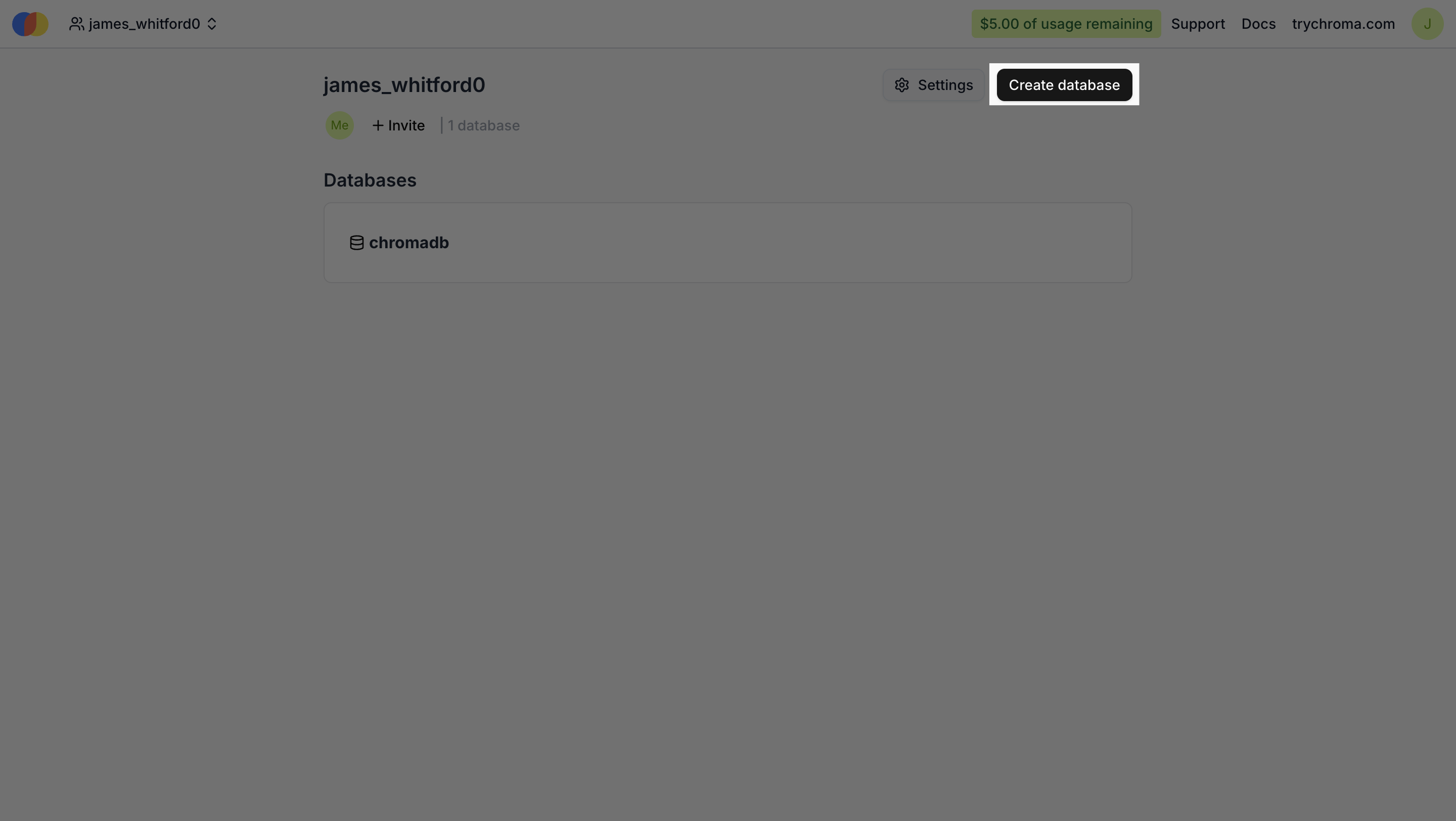

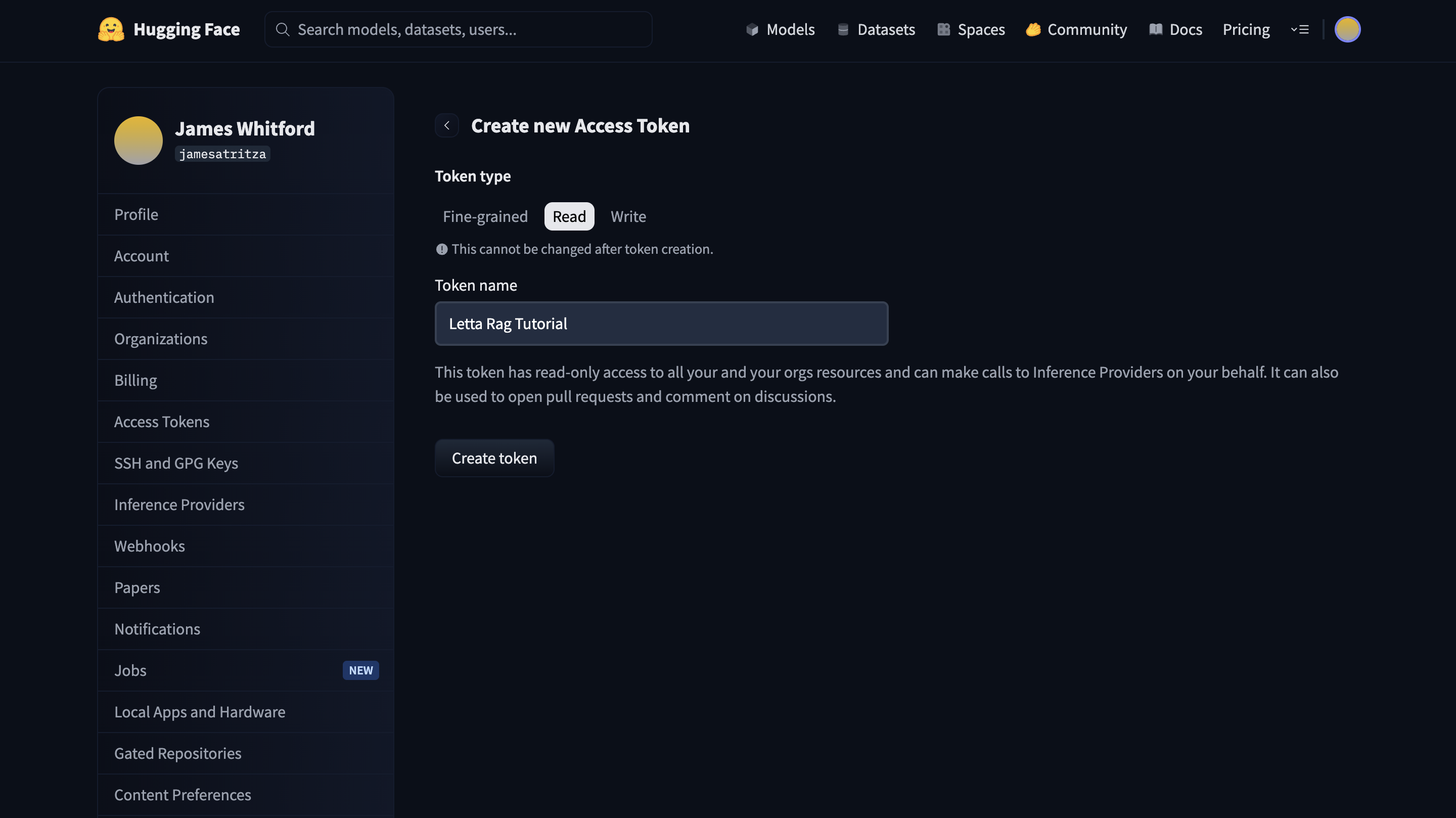

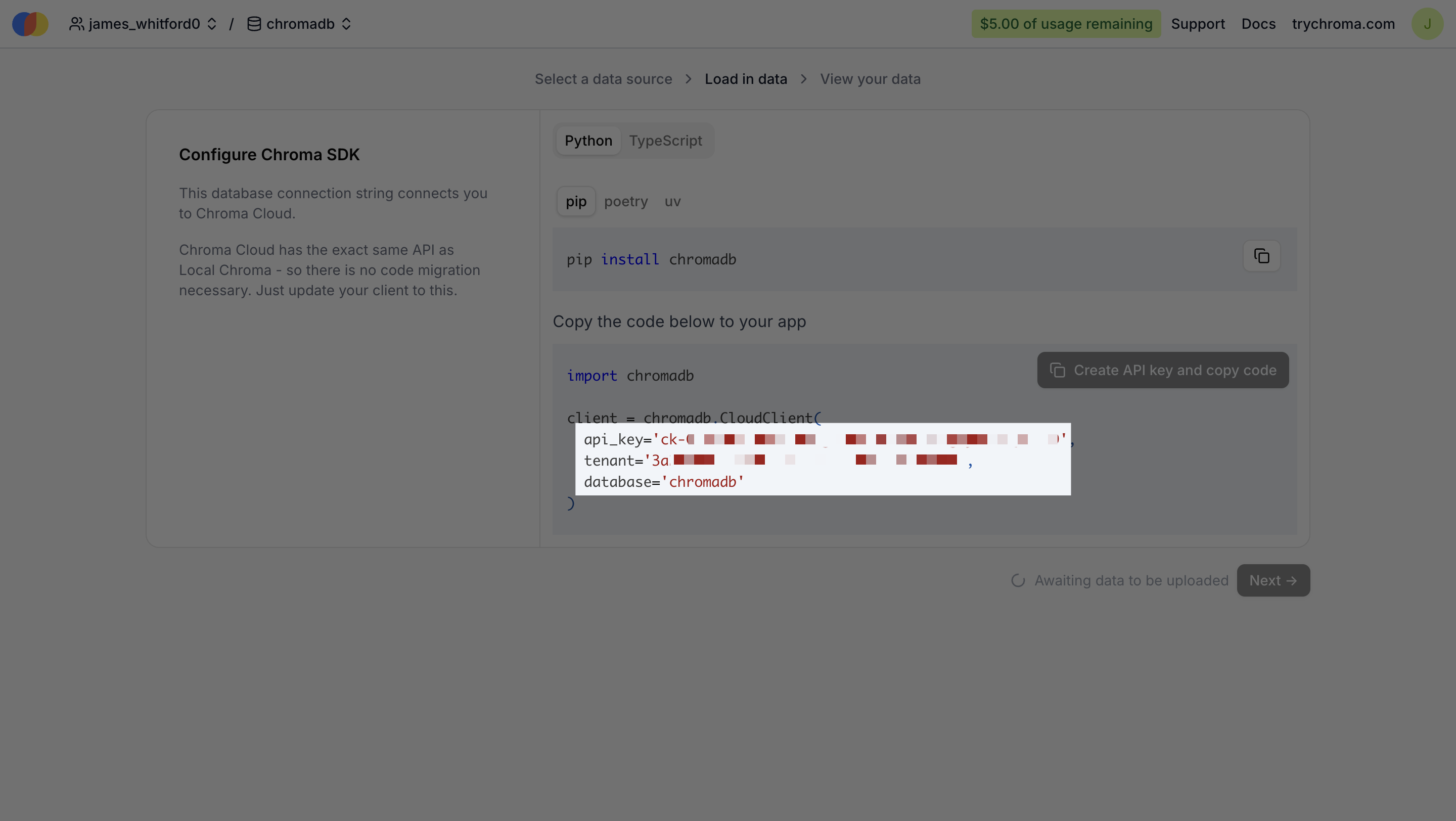

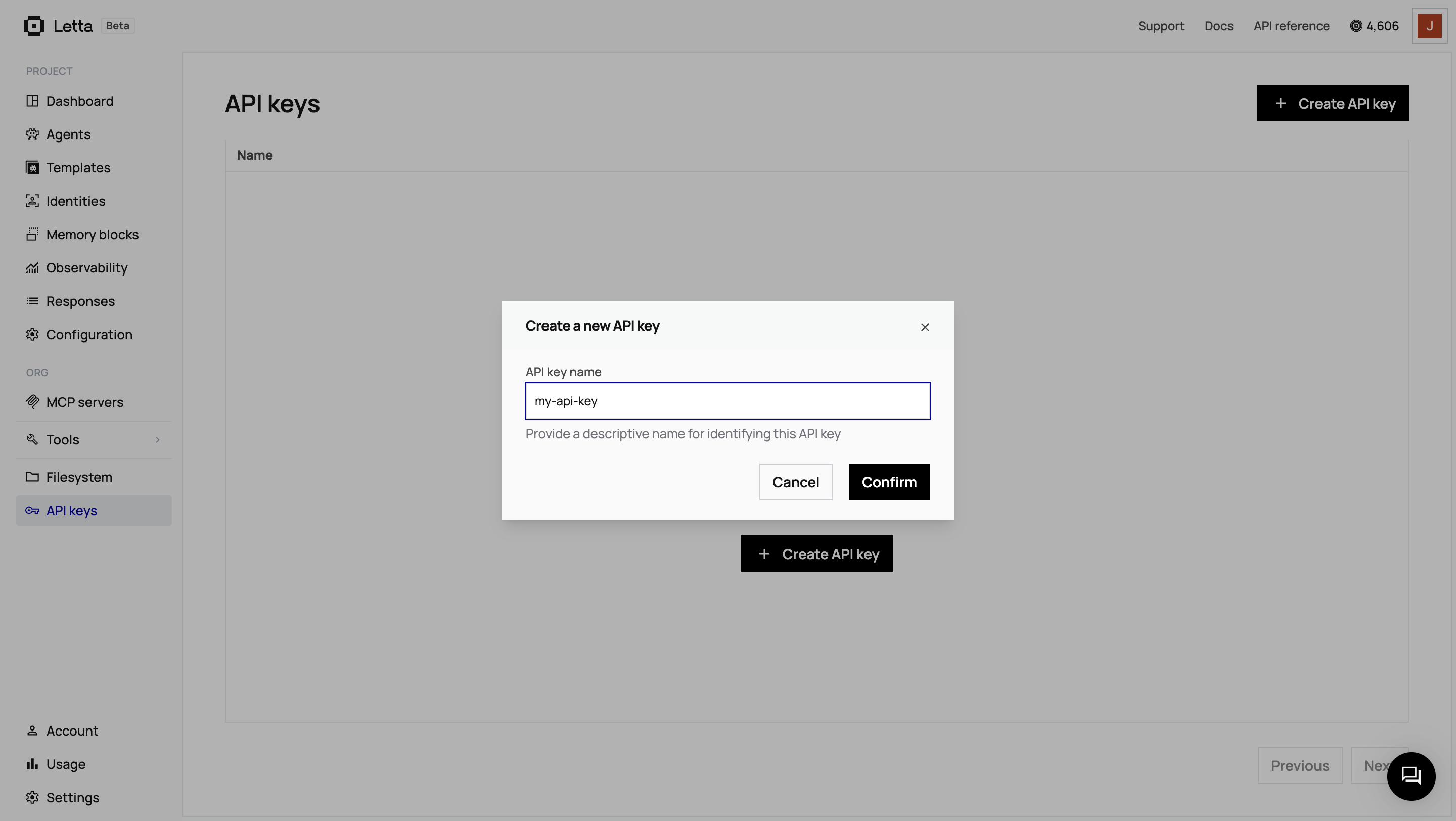

Getting Your API Keys

We’ll need API keys for Letta and your chosen vector database.

Once you have these credentials, create a .env file in your project directory. Add the credentials for your chosen database:

$
LETTA_API_KEY="..."
>
CHROMA_API_KEY="..."
>
CHROMA_TENANT="..."
>
CHROMA_DATABASE="..."

Step 1: Set Up the Vector Database

First, we need to populate your chosen vector database with the content of the research papers. We’ll use two papers for this demo: “Attention Is All You Need” and “BERT: Pre-training of Deep Bidirectional Transformers for Language Understanding”.

Before we begin, let’s set up our development environment:

$
# Create a Python virtual environment to keep dependencies isolated
>
python -m venv venv
>
source venv/bin/activate  # On Windows, use: venv\Scripts\activate

Typescript users must update package.json to use ES modules:

1
"type": "module"

Download the research papers using curl with the -L flag to follow redirects:

curl -L -o 1706.03762.pdf https://arxiv.org/pdf/1706.03762.pdf
curl -L -o 1810.04805.pdf https://arxiv.org/pdf/1810.04805.pdf

Verify the PDFs downloaded correctly:

file 1706.03762.pdf 1810.04805.pdf

You should see output indicating these are PDF documents, not HTML files.

Install the necessary packages for your chosen database:

# requirements.txt
letta-client
chromadb
pypdf
python-dotenv

$
pip install -r requirements.txt

Now create a setup.py or setup.ts file to load the PDFs, split them into chunks, and ingest them into your database:

1
import os
2
import chromadb
3
import pypdf
4
from dotenv import load_dotenv
5
6
load_dotenv()
7
8
def main():
9
    # Connect to ChromaDB Cloud
10
    client = chromadb.CloudClient(
11
        tenant=os.getenv("CHROMA_TENANT"),
12
        database=os.getenv("CHROMA_DATABASE"),
13
        api_key=os.getenv("CHROMA_API_KEY")
14
    )
15
16
    # Create or get the collection
17
    collection = client.get_or_create_collection("rag_collection")
18
19
    # Ingest PDFs
20
    pdf_files = ["1706.03762.pdf", "1810.04805.pdf"]
21
    for pdf_file in pdf_files:
22
        print(f"Ingesting {pdf_file}...")
23
        reader = pypdf.PdfReader(pdf_file)
24
        for i, page in enumerate(reader.pages):
25
            collection.add(
26
                ids=[f"{pdf_file}-{i}"],
27
                documents=[page.extract_text()]
28
            )
29
30
    print("\nIngestion complete!")
31
    print(f"Total documents in collection: {collection.count()}")
32
33
if __name__ == "__main__":
34
    main()

Run the script from your terminal:

$
python setup.py

If you are using MongoDB Atlas, you must manually create a vector search index by following the steps below.

1
{
2
  "fields": [
3
    {
4
      "type": "vector",
5
      "path": "embedding",
6
      "numDimensions": 384,
7
      "similarity": "cosine"
8
    }
9
  ]
10
}

Your vector database is now populated with research paper content and ready to query.

Step 2: Create a Custom Search Tool

A Letta tool is a Python function that your agent can call. We’ll create a function that searches your vector database and returns the results. Letta handles the complexities of exposing this function to the agent securely.

Create a new file named tools.py (Python) or tools.ts (TypeScript) with the appropriate implementation for your database:

1
def search_research_papers(query_text: str, n_results: int = 1) -> str:
2
    """
3
    Searches the research paper collection for a given query.
4
5
    Args:
6
        query_text (str): The text to search for.
7
        n_results (int): The number of results to return.
8
9
    Returns:
10
        str: The most relevant document found.
11
    """
12
    import chromadb
13
    import os
14
15
    # ChromaDB Cloud Client
16
    # This tool code is executed on the Letta server. It expects the ChromaDB
17
    # credentials to be passed as environment variables.
18
    api_key = os.getenv("CHROMA_API_KEY")
19
    tenant = os.getenv("CHROMA_TENANT")
20
    database = os.getenv("CHROMA_DATABASE")
21
22
    if not all([api_key, tenant, database]):
23
        raise ValueError("CHROMA_API_KEY, CHROMA_TENANT, and CHROMA_DATABASE must be set as environment variables.")
24
25
    client = chromadb.CloudClient(
26
        tenant=tenant,
27
        database=database,
28
        api_key=api_key
29
    )
30
31
    collection = client.get_or_create_collection("rag_collection")
32
33
    try:
34
        results = collection.query(
35
            query_texts=[query_text],
36
            n_results=n_results
37
        )
38
39
        document = results['documents'][0][0]
40
        return document
41
    except Exception as e:
42
        return f"Tool failed with error: {e}"

This function takes a query, connects to your database, retrieves the most relevant documents, and returns them as a single string.

Step 3: Configure an Agentic Research Assistant

Next, we’ll create a new agent. This agent will have a specific persona that instructs it on how to behave and, most importantly, it will be equipped with our new search tool.

Create a file named create_agentic_agent.py (Python) or create_agentic_agent.ts (TypeScript):

1
import os
2
from letta_client import Letta
3
from dotenv import load_dotenv
4
from tools import search_research_papers
5
6
load_dotenv()
7
8
# Initialize the Letta client
9
client = Letta(token=os.getenv("LETTA_API_KEY"))
10
11
# Create a tool from our Python function
12
search_tool = client.tools.create_from_function(func=search_research_papers)
13
14
# Define the agent's persona
15
persona = """You are a world-class research assistant. Your goal is to answer questions accurately by searching through a database of research papers. When a user asks a question, first use the `search_research_papers` tool to find relevant information. Then, answer the user's question based on the information returned by the tool."""
16
17
# Create the agent with the tool attached
18
agent = client.agents.create(
19
    name="Agentic RAG Assistant",
20
    description="A smart agent that can search a vector database to answer questions.",
21
    memory_blocks=[
22
        {
23
            "label": "persona",
24
            "value": persona
25
        }
26
    ],
27
    tools=[search_tool.name]
28
)
29
30
print(f"Agent '{agent.name}' created with ID: {agent.id}")

Run this script once to create the agent in your Letta project:

$
python create_agentic_agent.py

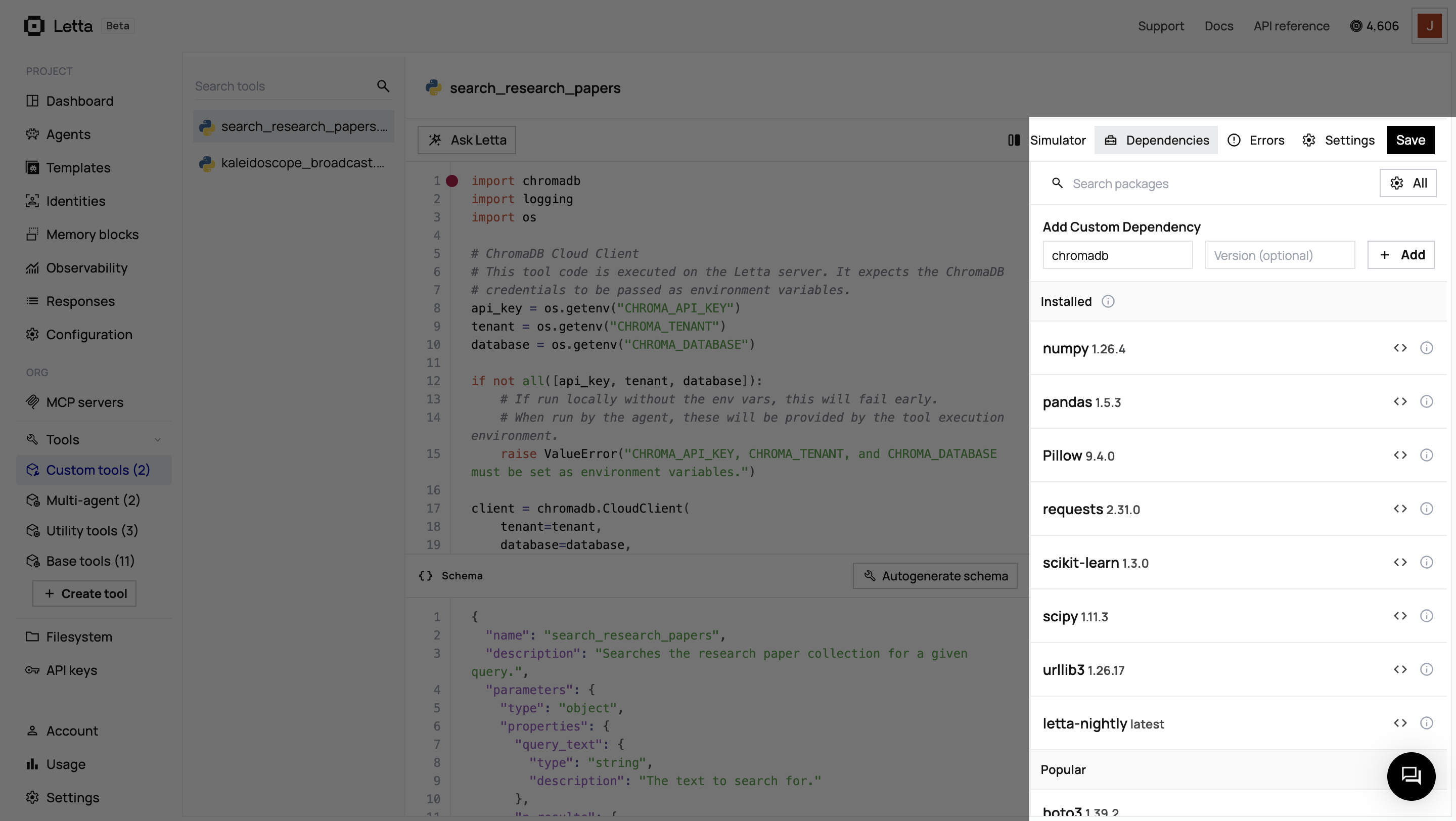

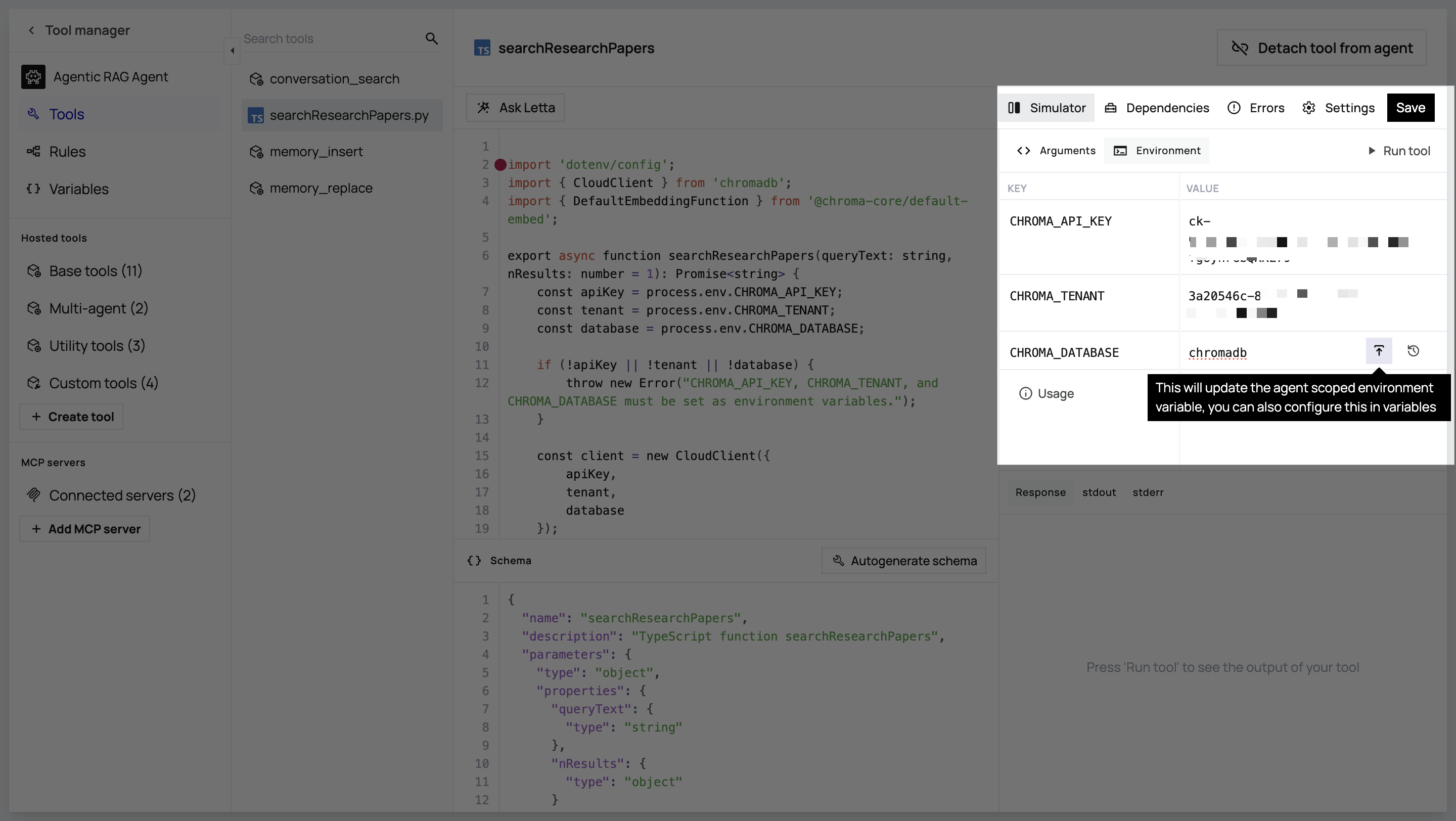

Configure Tool Dependencies and Environment Variables

For the tool to work within Letta’s environment, we need to configure its dependencies and environment variables through the Letta dashboard.

chromadb

CHROMA_API_KEY
CHROMA_TENANT
CHROMA_DATABASE

Now, when the agent calls this tool, Letta’s execution environment will know to install the necessary dependencies and will have access to the necessary credentials to connect to your database.

Step 4: Let the Agent Lead the Conversation

With the agentic setup, our client-side code becomes incredibly simple. We no longer need to worry about retrieving context, we just send the user’s raw question to the agent and let it handle the rest.

Create the agentic_rag.py or agentic_rag.ts script:

1
import os
2
from letta_client import Letta
3
from dotenv import load_dotenv
4
5
load_dotenv()
6
7
# Initialize client
8
letta_client = Letta(token=os.getenv("LETTA_API_KEY"))
9
10
AGENT_ID = "your-agentic-agent-id"  # Replace with your new agent ID
11
12
def main():
13
    while True:
14
        user_query = input("\nAsk a question about the research papers: ")
15
        if user_query.lower() in ['exit', 'quit']:
16
            break
17
18
        response = letta_client.agents.messages.create(
19
            agent_id=AGENT_ID,
20
            messages=[{"role": "user", "content": user_query}]
21
        )
22
23
        for message in response.messages:
24
            if message.message_type == 'assistant_message':
25
                print(f"\nAgent: {message.content}")
26
27
if __name__ == "__main__":
28
    main()

When you run this script, the agent receives the question, understands from its persona that it needs to search for information, calls the search_research_papers tool, gets the context, and then formulates an answer. All the RAG logic is handled by the agent, not your application.

Next Steps

Now that you’ve integrated Agentic RAG with Letta, you can expand on this foundation:
